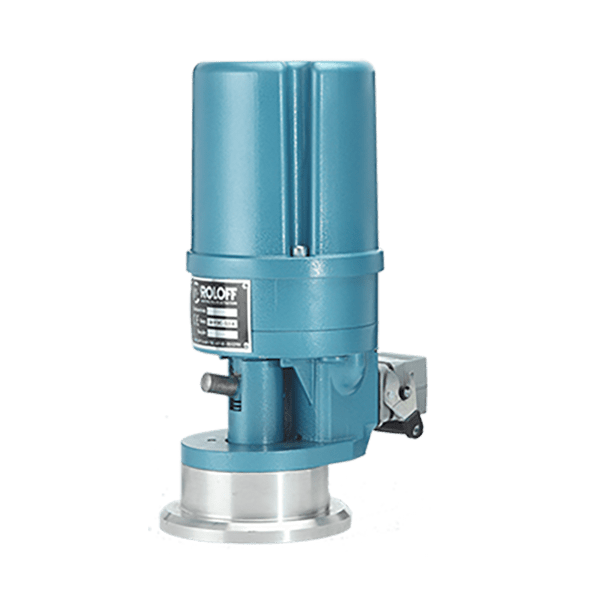

TA Actuator 120

Torque up to 90 Nm. Popular in shipbuilding, building services, freight wagons. Extremely reliable rotary drive in a robust all-metal housing that can withstand decades of use.

Up to 90 NmTA Actuator 120

We advise you

If you have a question about this or other products, just give us a call or send us a message using our contact form.

Question about this product?

Product description

This drive has been produced with an unchanged basic design for decades. Commonly used in shipbuilding, water management and where space is limited. Known in building technology as a robust alternative to cheap drives that cause high maintenance costs.

The size ratio between actuator and valve in the torque range up to NW 125 appears very harmonious. Strong acceleration of serial runtimes can be easily implemented. In the IP 68 version, e.g. mounted in oyster breeding banks.

Advantages

  • High torque (up to 90 Nm)
  • Compact size
  • Simple electrical control
  • Robust metal housing
  • Lots of options

Downloads

Technical data 1

 TA 120TA 120/2TA 120 Z1TA 120 Z2TA 120 Z3
Torques50 Nm90 Nm50 Nm70 Nm90 Nm
Running time 90°approx. 4 secondsapprox. 6 secondsabout 14 seconds.about 25 seconds.about 50 seconds.
Weight5.5 kg6 kg6.5 kg6.5 kg6.5 kg
Duty cycle100 % ED S 4 (Class C) serial
(not TA 120/2)
100 % ED S 4 (Class C) serial
(not TA 120/2)
100 % ED S 4 (Class C) serial
(not TA 120/2)
100 % ED S 4 (Class C) serial
(not TA 120/2)
100 % ED S 4 (Class C) serial
(not TA 120/2)
engine24VDC24VDC24VDC24VDC24VDC
Rated current2.5A2.5A2.5A2.5A2.5A
rated capacity75 KW75 KW75 KW75 KW75 KW
Height285mm285mm285mm285mm285mm
Width160mm160mm160mm160mm160mm
depth175mm175mm175mm175mm175mm

Technical data 2

Data sheet TA 120 / Multiturn / Linear application / Control mode
Multiturn  Linear operation
TypeTA 120TA 120/2TypeTA 120120/2
Torque (Nm)50 Nm90 NmThrust force500 N1000 N
Running time 360°approx. 16 secondsapprox. 24 sec.max. thrust length140mm140mm
Possible 360° turns1-1001-100Running time (approx.)
for max. thrust length
approx. 8 secondsapprox. 12 seconds.
Weight5.5 kg6 kgWeight8.5 kg9 kg
General drive data
Duty cycle  100 % ED S 4 (Class C) serial
(not TA 120/2)

engine  24VDC
Rated current  2.5A
rated capacity  75W
Height  285mm
Width  160mm
depth  175mm

Options

parameterdefaultOptionsService / custom-made products
Operating modeOpen/close 90° adjustment angle
  • Multi-way operation E 40
  • Multiturn operation
  • Linear operation
  • Consulting rule applications
  • Step control E18 or follow-up control E21
  • Data bus solutions
Flange connectionBolt circle according to DIN ISO 5211Structural parts according to the requirements of the valveMechanical connection in the factory
(adaptation)
supply
tensions
24VDC
  • 230V AC/50Hz
  • other AC/DC voltage
Consulting electrical implementation
Cable entry
  • Compression fitting
  • M 20 x 1.5
Plug connectionElectrical connection on site
position
return message
Cam switch
  • Potentiometers
  • Transmitter 0-(4)-20 mA
  • Consulting signal processing
  • SMS control and feedback
Duty cycle100 % ED S 4 (Class C)
(not TA 120/2)
Permanently modulating
(Class D)
  • Engine modifications
  • Brushless motors
Metal casealuminumstainless steel
  • RAL paints
  • Coatings
  • Anodization
Protection classIP65Modifications up to IP68user-specific
Housing
Manual
Emergency operation
 Separating clutch with hand leverEmergency operation via handwheel
Failsafe
Facilities

  • Auxiliary voltage E71
  • Spring closure FM system
  • Mechanical connection in the factory (adaptation)
  • Electrical connection on site
